WORLD CLASS TECHNOLOGY IN
MAMMOTH PROPORTIONS

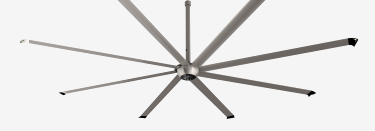

The Industrial Series from Mammoth Fans are Super High Volume, Low Speed (SHVLS) fans delivering maximum results in a wider range of applications. These fans use world class PMSM technology for larger air volume and a cooler more comfortable space.
WIDE RANGE OF APPLICATIONS FOR:
- Warehouses
- Indoor sports centres
- Activity/play centres
- Transportation terminals
- Commercial sites
- Alfresco dining areas
- Large format retail stores
DESIGN
FEATURES & ELEMENTS
1-8 °C
effective body cooling*
*depending on speed selection
SPEED
1 – 4m/s wind speed regulation
MIXES
excellent air circulation
REDUCES
ideal for dehumidification and reducing dampness
LOW MAINTENANCE
The Mammoth Industrial Series motor does not have a gear box and therefore no significant maintenance is required. Maintaining cooling systems with traditional gear drives can be costly and time consuming. But thanks to the technology of the PMSM, electromagnetic interaction and bearing transmission, plus the advanced air-cooled design of the Mammoth motor, simple maintenance of cleaning the blades and checking all support wires, blade bolts are tightened is all the maintenance required. The Mammoth Fan is virtually maintenance free.

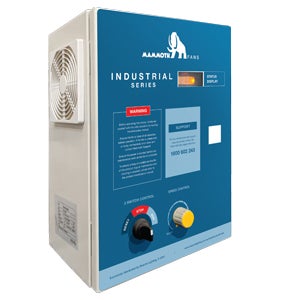

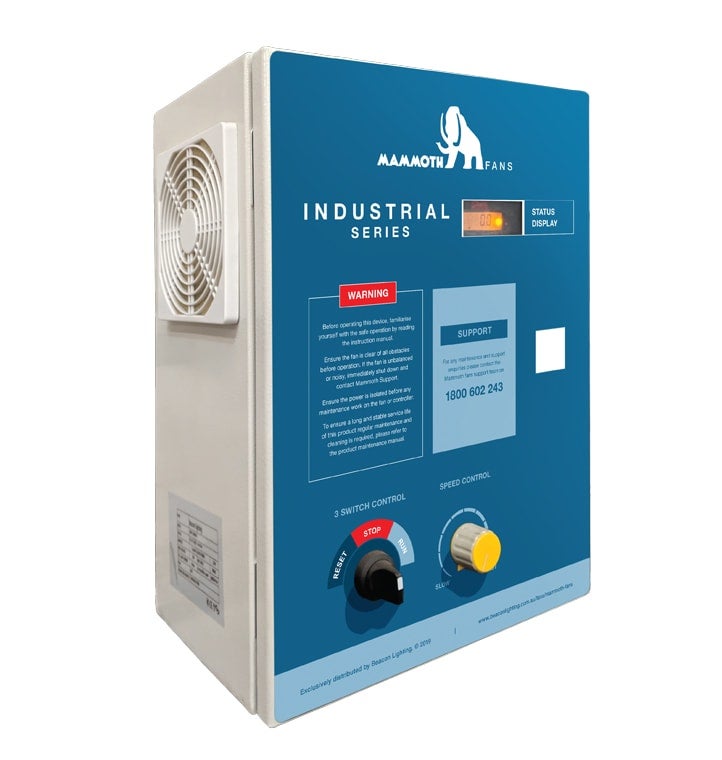

CONTROL BOX
Long lasting, robust, smart and reliable.
With trouble shooting options available from the front panel, access to the internals of the controller are rarely required. From the control box you can clearly see how much power is being used to operate the fan, and also easily control the speed of the fan.
For information on troubleshooting refer to the installation manual.
READY TO ENTER A NEW AGE?
Mammoth Fans has the perfect solution for your project. Our team is here to assist with your query. Request a Quote to learn more about Mammoth Fans.
TECHNICAL
SPECIFICATIONS
5.5 METRE FAN
SKU
211401
WIDTH / DIAMETER (MM)
5500
BLADES
5
WEIGHT
120kg
POWER
0.9kw
INPUT VOLTAGE
Single phase 220-240V
FULL LOAD CURRENT
4.1A
NOISE LEVEL
43dB
FAN SPEED CONTROL
70rpm max
WARRANTY
5 years from d.o.p *
* Valid for 5 years from date of purchase
EXTENSION ROD
1000mm, 1500mm, 2000mm optional extra
COLOUR
Silver
WIRING CABLE
4 core, 1.5mm, 20m
3 core, 2.5mm, 15m
IP RATING
IP55
AIRFLOW
12,200m3/min
6.1 METRE FAN
SKU
211416
WIDTH / DIAMETER (MM)
6100
BLADES
5
WEIGHT
129kg
POWER
1.1kw
INPUT VOLTAGE
Single phase 220-240V
FULL LOAD CURRENT
5.0A
NOISE LEVEL
43dB
FAN SPEED CONTROL
60rpm max
WARRANTY
5 years from d.o.p *
* Valid for 5 years from date of purchase
EXTENSION ROD
1000mm, 1500mm, 2000mm optional extra
COLOUR
Silver
WIRING CABLE
4 core, 1.5mm, 20m
3 core, 2.5mm, 15m
IP RATING
IP55
AIRFLOW
12,900m3/min
7.3 METRE FAN
SKU
211400
WIDTH / DIAMETER (MM)
7300
BLADES
5
WEIGHT
135kg
POWER
1.5kw
INPUT VOLTAGE
Single phase 220-240V
FULL LOAD CURRENT
6.8A
NOISE LEVEL
43dB
FAN SPEED CONTROL
57rpm max
WARRANTY
5 years from d.o.p *
*Valid for 5 years from date of purchase
EXTENSION ROD
1000mm, 2000mm, 2200mm optional extra
COLOUR
Silver
WIRING CABLE
4 core, 1.5mm, 20m
3 core, 2.5mm, 15m
IP RATING
IP55
AIRFLOW
14,800m3/min MAX
